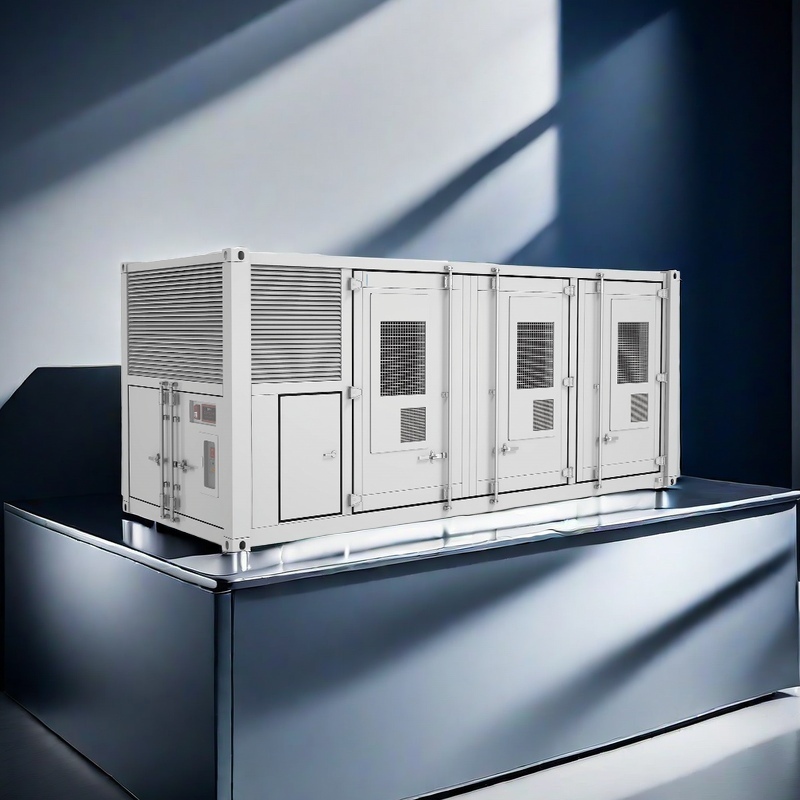

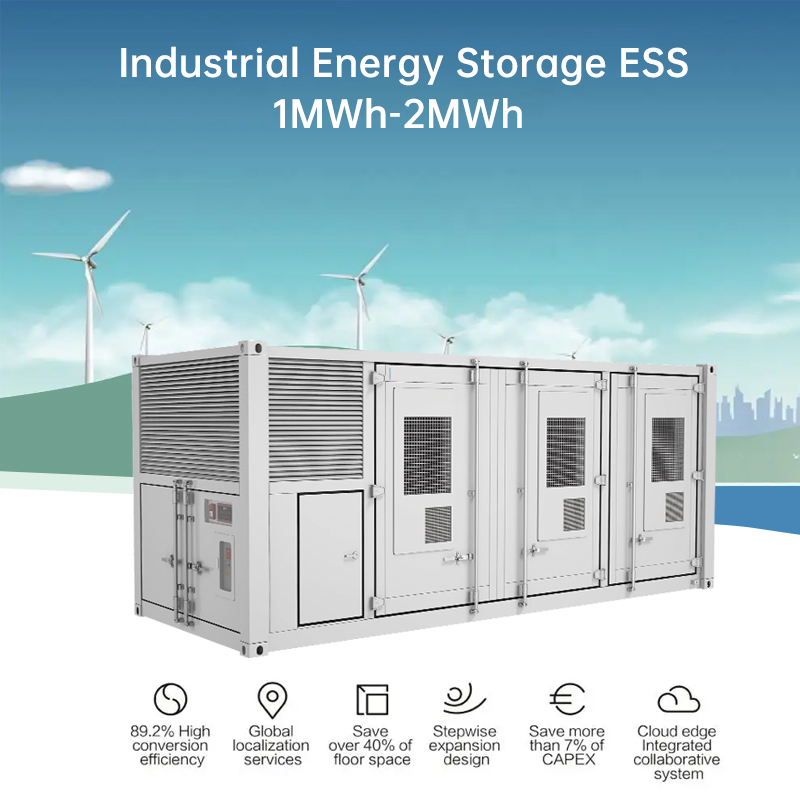

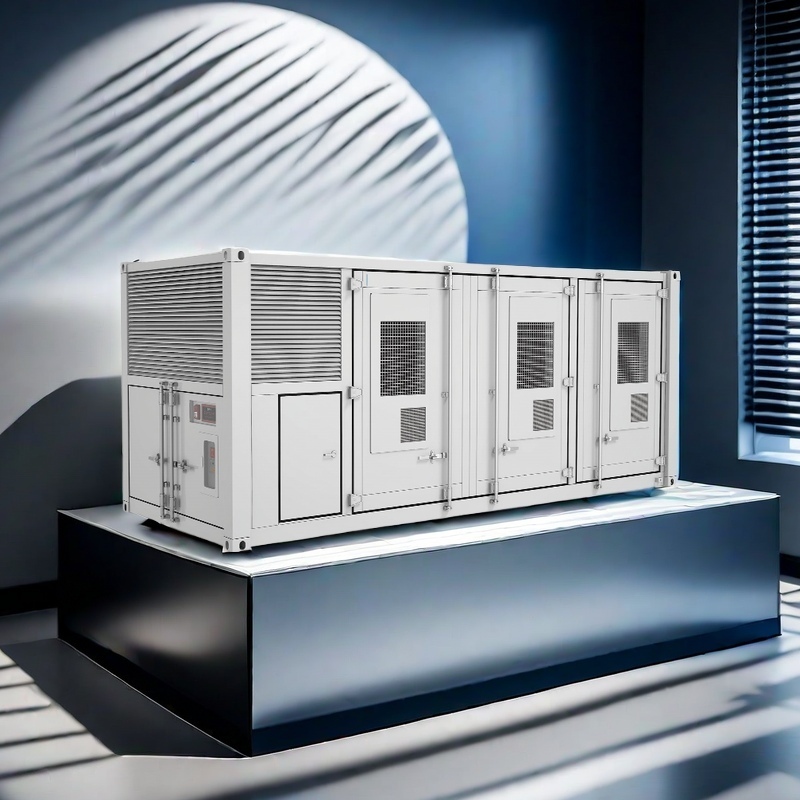

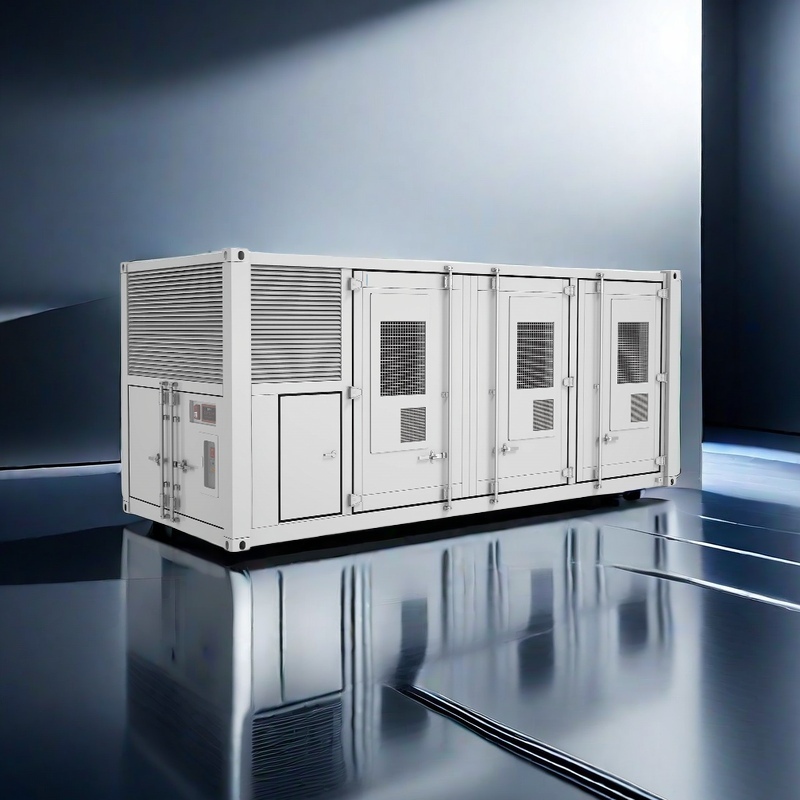

1MWH-2MWH Energy Storage Container

Item

1MW/2.0MWh

1.1 MW/2.2MWh

DC Data

Battery Chemistry

Lithium-lronPhosphate(LFP)

Cell Life Cycle

80% Retention with5,000 Cycles 0.5°c~25°c

Cell spec

3.2V/280Ah

String Configuration

1P 384S

1P416S

Number of Strings

6

Rated Energy Capacity

2Mwh

2.2 MWh

DC Rated Energy Capacity

2,064.36kWh

2.236.44kWh

Rated Voltage

1.228.8V

1.331.2V

Voltage Range

1.075.2V~1,363.2V

1.164.8V~1,476.8V

BMS Communication Interface

RS485, Ethernet

BMS Communication Protocol

Modbus RTU, Modbus TCP

AC Data

Rated AC Power

1.000kw

1.100 kw

Maximum AC Power

1.320kW

Rated Voltage

690V

Grid Voltage Range

586.5~759V (Optional)

AC Rate of Curent

836.8A

920.5A

Output THDi

<3%

AC PF

0.1~1 leading oragging (controllable)

AC Output

Three-phase and three-wire

General Data

Dimension w/o clearances (L*W*H)

6058x2438x2591mm

6.058x2,438x2,896mm

Weight of the whole system

24t

25.5t

Degree of protection

lp65

Operating Temperaturerange

-20~40℃

Relative Humidity

0~95%(non-condensing)

Max Working Altitude

4,000m/13,123ft

Cooling concept of Dc Hatch

HVAC

Fire Fighting System

NOVEC1230/FM-200

Communication Interfaces

RS485, Ethernet GPRs

Certificates

UL9540,IEC62619,IEC62109,1EC62933,UN3536, etc.
