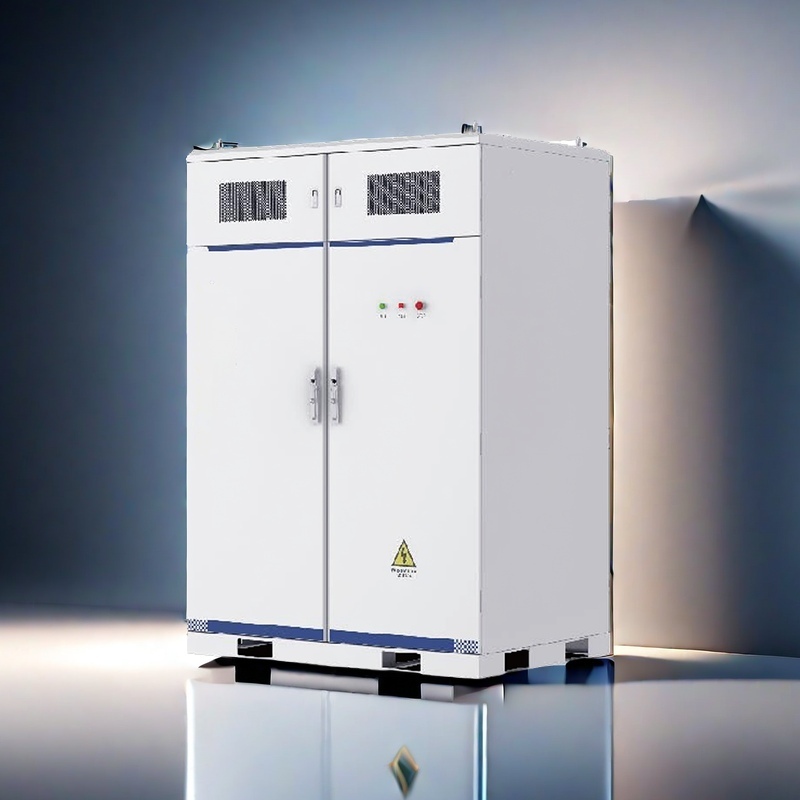

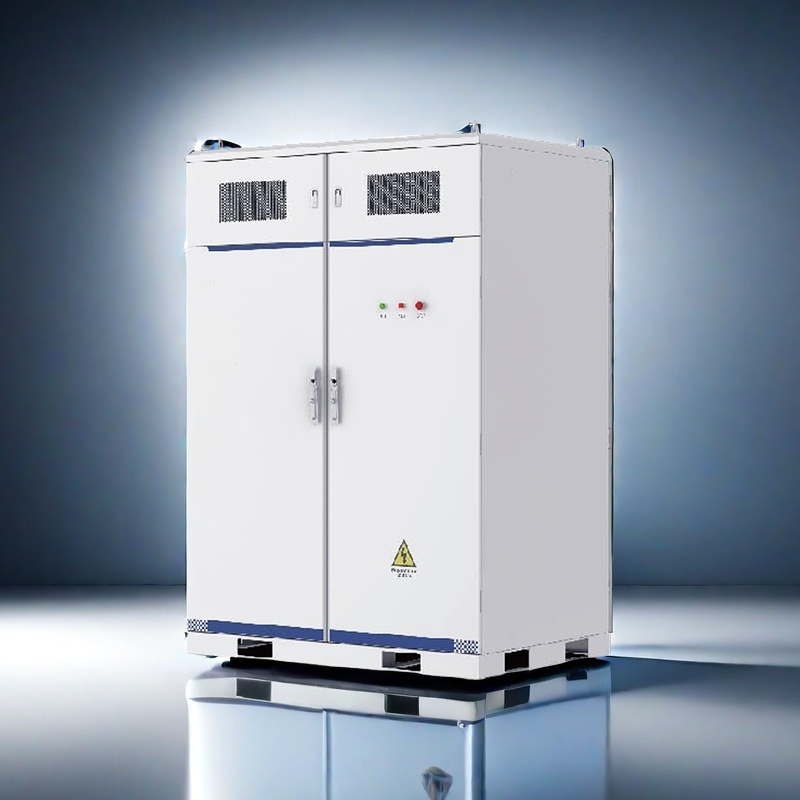

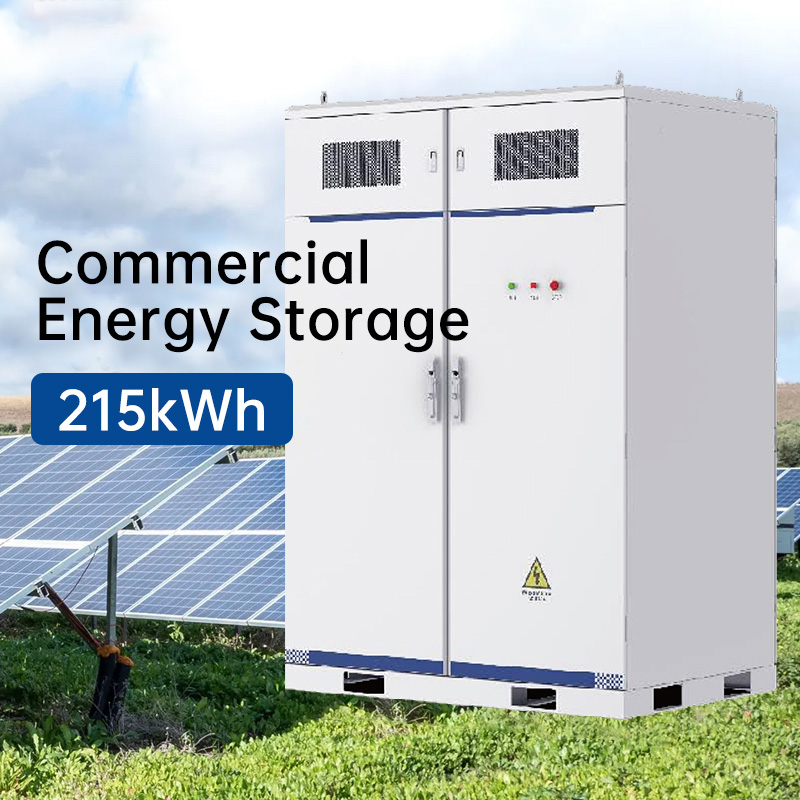

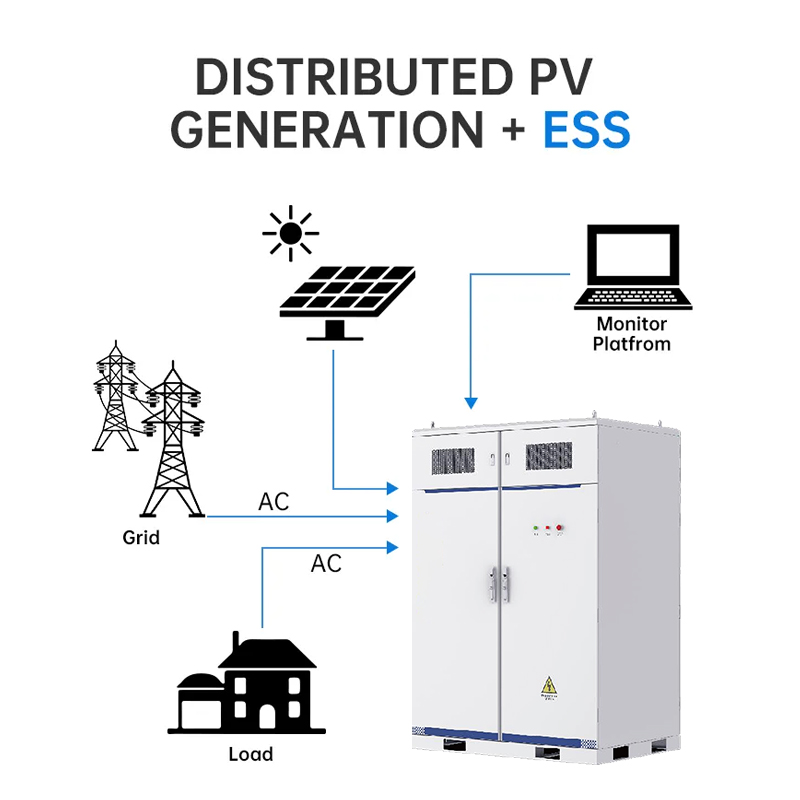

215KWH Commercial Energy Storage Cabinets
Energy storage system parameters
Project |
Specification |
Remark |
||
Basic parameters |
Configuration |
1P 240S |
|
|
Number of electrical boxes |
5 |
|
||
Battery Type |
Lithium Iron Phosphate |
|
||
Cycle life |
≥6000 @25℃1C |
|
||
Bidirectional inverter |
200kW |
|
||
Wiring Mode |
Quick Insert |
|
||
Electrical performance parameters |
Charging Current |
Rated |
140A |
|
|
maximum |
280A |
|
|
Discharge current |
Rated |
140A |
|
|
|
maximum |
280A |
|
|
Nominal power |
215KWh |
|
||
Voltage range |
672~864VDC |
|
||
Rated voltage |
768VDC |
3.2V |
||
Auxiliary power supply(liquid cold machine Group) |
Voltage range |
220V AC(LN) |
|
|
power |
CoolingCapacity≥5 KW@W18/L35 |
50/60HZ |
||
|
Heater≥2000W |
|
||
Impact power |
3.5KW |
25℃ |
||
Auxiliary power supply(BMS） |
Voltage range |
22V~26V(DC) |
|
|
Power consumption in operation state |
600W |
|
||
Basic parameters of energy storage cabinet |
Dimensions (H*W*D) |
W1500xH 2180xD1390mm |
Subject to actual situation |
|
color |
Light Gray(RAL9003/RAL7021) |
To be determined |
||
weight |
3500Kg(estimated) |
Subject to actual situation |
||
Corrosion resistance grade |
C5 |
|
||
Earthquake resistance |
9Earthquake intensity |
(2016 California Building code SDC D) |
||
IP grade |
IP55 |
|
||
Power connection method |
AC side: screw connection + cold-pressed cable terminalDC side: Quick plug |
|
||
Ground resistance |
System grounding resistance ≤ 1ΩAnd meet local scope requirements |
Reserved grounding bolt |
||
Communication |
Modbus TCP |
|
||
Cooling method |
Liquid Cooling |
|
||
Coolant |
50% ethylene glycol + water |
|
||
DC voltage range |
600~950V |
|
||
Rated output power |
200kW |
pairPCSParallel |
||
Rated output voltage |
380V |
|
||
Output voltage range |
380V±10% |
|
||
Rated output frequency |
50Hz |
|
||
Output frequency range |
50Hz±2Hz |
|
||
AC side cycle efficiency |
86.30% |
Calculate the system efficiency of 200kW/232kWh with auxiliary power consumption of 2.5kW: 1. Charging rectification: 1*98%*(1-2.5%) =0.9555 2. Battery efficiency: 95% 3. Discharging inversion: 1*97.5%*(1-2.5%) =0.9506 Theoretical value of charging and discharging efficiency: 0.9555*0.95*0.9506 =0.8628 8 |
||
Grid type |
3L+N+PE |
|
||
Performance parameters |
Relative humidity |
0%-95%, no condensation |
||
Operating temperature |
-20℃ -+50℃ |
|||
Storage temperature |
-40℃~75℃ |
|||
Operating altitude |
≤2000m Normal operation, 2000m~4000m derating operation |
|||
Corrosion resistance grade |
C4-Default,C5-Optional |
|||
EMC |
CLASS-A |
|||
Protection level |
IP55 |
|||
PCS parameter requirements
Project |
Describe |
|
DC parameters |
Maximum DC power |
110KW |
DC bus maximum voltage |
1000V |
|
Maximum current on DC side |
175A@45℃ |
|
DC voltage operating range |
600~950V |
|
AC side parameters (grid-connected) |
Rated Power |
100kw@50℃ |
Maximum output power |
110kw@45℃ |
|
Rated output current |
143A@50℃ |
|
Maximum output current |
143A@45℃ |
|
Access method |
Three-phase three-wire/three-phase four-wire |
|
Isolation method |
Non-isolated |
|
Reactive power range |
-100kvar~+100kvar |
|
Rated grid voltage |
380V |
|
Allowable grid voltage |
-15%~+10% or 323~418V |
|
Rated grid frequency |
50Hz/60Hz |
|
Allowable frequency deviation |
±5 |
|
Power Factor |
-1~+1 |
|
Charge and discharge conversion time |
20ms |
|
PCS |
Maximum achievable efficiency |
98.50% |
Overload capacity |
1.1 times long-term operation (45°C), 1.2 times 1min, 1.3 times 1s |
|
Allowable ambient temperature |
-30℃~ +70℃(>50℃ derating) |
|
Allowable relative humidity |
0%RH~100%RH |
|
Maximum operating altitude |
4000m（＞3000m (derating) |
|
noise |
＜60DB |
|
Machine size |
W480mm×H186mm×D620mm |
|
Machine quality |
50kg |
|
Protection level |
IP54 |
|
Cooling method |
Air Cooling |
|
