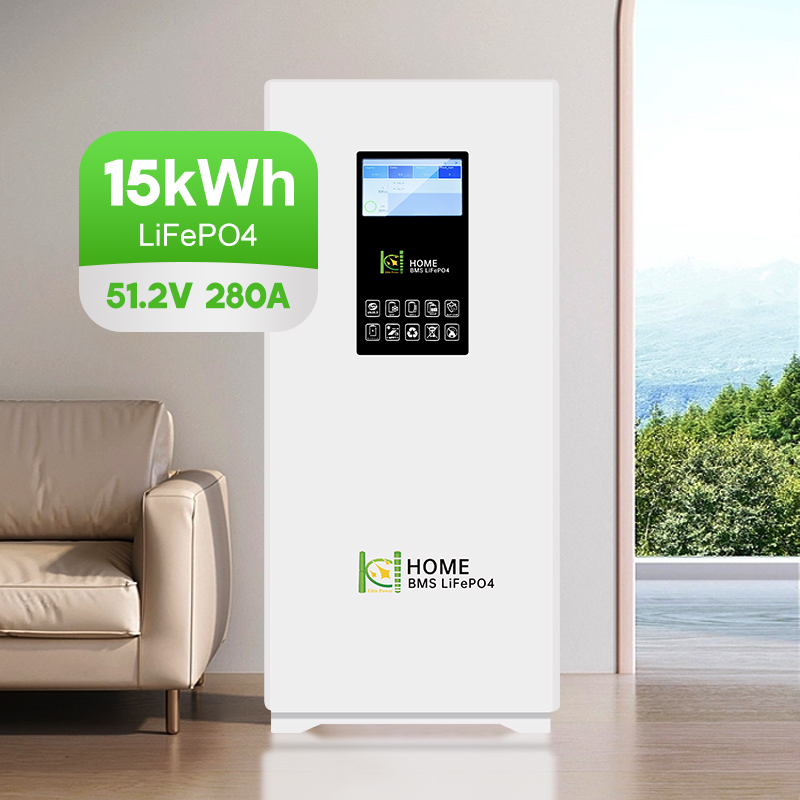

High-Performance Home Energy Storage 15kWh

Battery cel

specification Model

280Ah

capacity

280Ah

Nominal voltage

3. 2V

Internal resistance

s0. 2mΩ

Combination mode

16S1 P

 Grouping standard

Tolerance <1%

single section internal resistance range<0.2mQ

charge retention capacity>90%

Parameter

Nominal voltage(v)

   51.2

Nominal capacity (Ah)

280

Minimum capacity (Ah)

280

charging cut-off voltage (v)

58. 4

Discharge cut-of voltage (v)

40

USB output voltage (v)

No

Maximum continuous Discharge current(A)

200

Display screen

yes

Bluetooth function

yes

standard charging current(A)

50

suitable charging Temperature

0'C~45'C

suitable Discharge Temperature

-20'C ~65'C

Battery size

460*280*9753mm

Battery weight

 125kg

storage Temperature Range

-20C ~45C

storage  Humidity(RH)

5%~95%(Non-condensing)

Management system

single over voltage protection value

3.65V

over voltage Release value

3.5V

single under voltage protection value

2.5V

under voltage Release value

3.0V

Overcurrent Protection Value

210A
