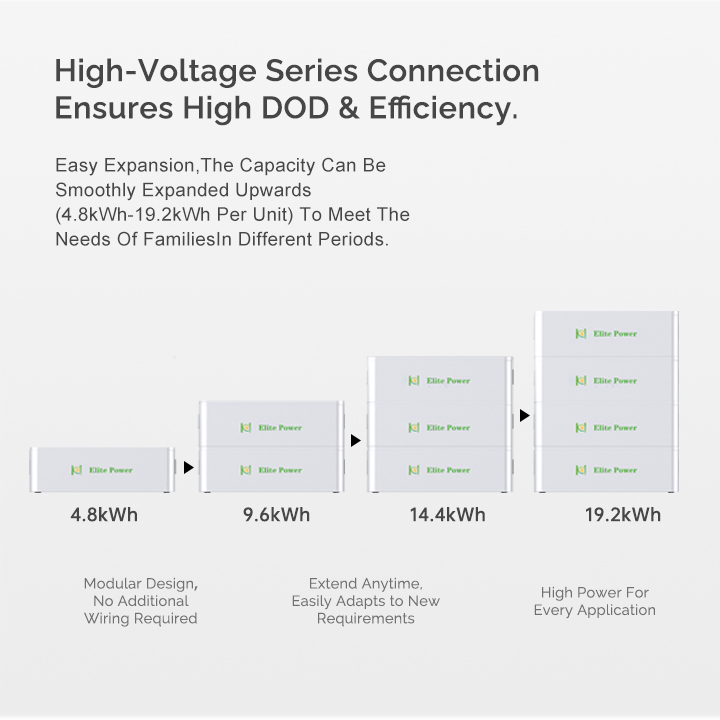

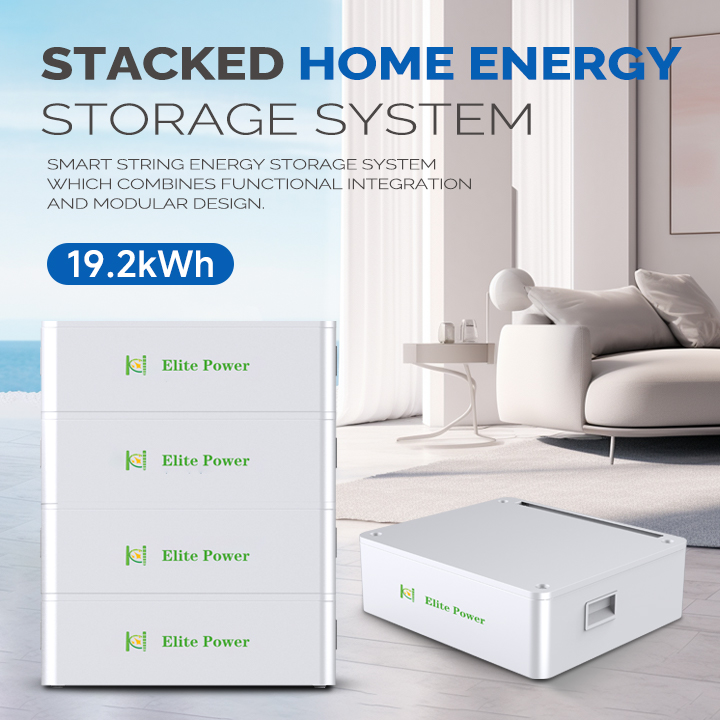

Us Standard Stackable Home Energy Storage 19.2KWH

Mode

4.8KW

9.6KW

14.4KW

19.2KW

Main Parameter

Rated capacity

4.8

9.6

14.4

19.2

Deep of Discharge

95%

95%

95%

95%

Nominal capacity

100Ah

200Ah

300Ah

400Ah

Battery Type

LFP (LiFePO4)

Combination method

1M/15S1P

2M/15S1P

3M/15S1P

4M/15S1P

Nominal Voltage(V)

48

Capacity(Wh)

4800

9600

14400

19200

Charging mode

CC/CV

Cycle life (weeks)

6000 /times

6000 /times

6000 /times

6000 /times

Communication mode

CAN/RS485/RS232

Weight(kg)

49.14

98.28

147.42

196.56

Dimensions (length × width × height)

610*485*196mm

610×485 ×350mm

610×485 ×588mm

610× 185 ×784mm

Functional characteristic

Static voltage sampling accuracy of cell at room temperature

±5mV

±5mV

±5mV

±5mV

Current sampling accuracy at room temperature

≤±0.5%@FS

≤±0.5%@FS

≤±0.5%@FS

≤±0.5%@FS

Temperature sampling accuracy at normal temperature

±1℃

±1℃

±1℃

±1℃

Short-circuit protection

Y

Heating

N

Charge balancing function

Y

Cell capacity estimation function

Y

Set battery string full charge capacity,   current capacity, and designed capacity

Y

LCD status display function

Y

Host computer software control function

The host computer software can easily set protection parameters such as overcharge, over-discharge, charge-discharge over-current, over temperature, and low temperature, as well as parameters such as capacity, sleep, equalization, and storage.

Communication port

CAN/RS485/RS232

Sleep and wake up

Has a variety of sleep and wake up mode

Warranty

60 months
